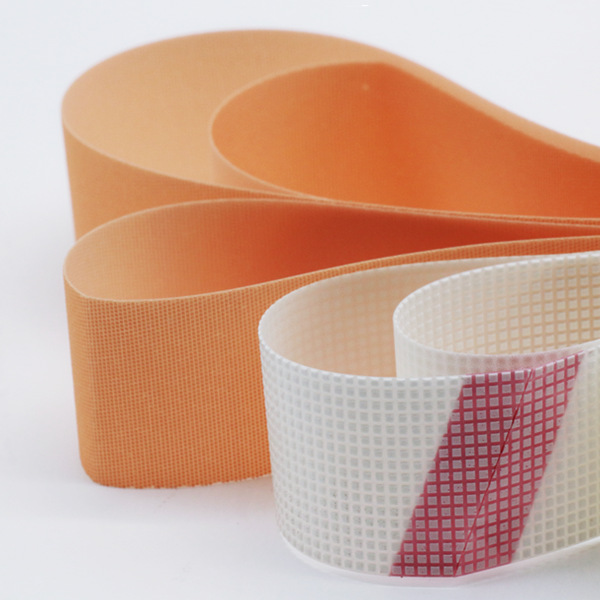

3D Structured Film (Cleaning belt for LCD panels)

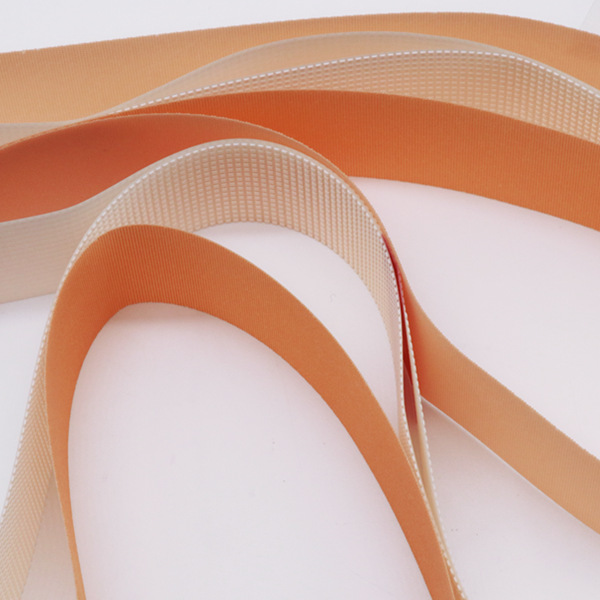

3D structured cleaning belt for LCD panel edge cleaning

Unique construction: The surface features tiny, repeating three-dimensional patterns (such as pyramids, cubes

Surface treatment of semiconductor materials (such as silicon wafers and silicon carbide).

Thinning and polishing LCD panels and optical glass.

Precision machining of hard and brittle materials such as ceramics, metals, and gemstones.

Diameter [mm]

15mm*838mm（Polishing belt）

30mm*1600mm（Polishing belt）

55mm*74mm（Grooved film）

55mm*80mm（Grooved film）

55mm*100mm（Grooved film）

55mm*140mm （Grooved film）

Send Email

Chat Now

Share With:

Structured Abrasive Film Belt Structure for Efficient LCD Panel Edge Cleaning

Select three-dimensional alumina or cerium oxide abrasive then coat onto a substrate using gravure printing by using microstructure repetition techniques.

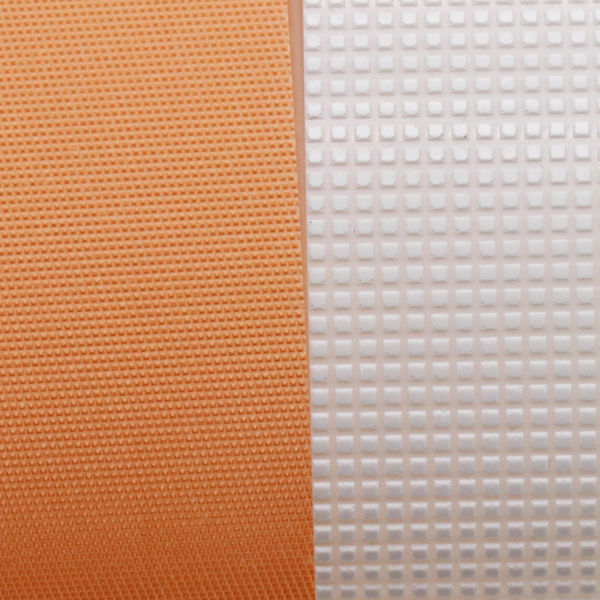

Unique construction: The surface features tiny, repeating three-dimensional patterns (such as pyramids, cubes, etc,provide a continuous and stable grinding force during polishing and has good chip removal performance.)

Match with MEDEC, SFA, Yitian and other annular belt equipment and YTS and other lapping equipment.

Excellent Self-Sharpening Properties：The grinding blocks wear down as they grind, providing a continuous and stable grinding force.

Extended Long Lifespan:The grinding layer possesses a substantial thickness, ensuring a prolonged service life.

Effective Prevention of Scratching: Grooves are distributed between the abrasive blocks to provide excellent chip evacuation, thereby effectively preventing surface scratching.

Used for cleaning residual adhesive (prior to LCD panel lamination), marker pen marks, fingerprints, dust and impurities, glass shards, and similar contaminants.

Panel types (TV, computer, tablet, mobile phone, navigator, etc.)

Why Use 3D Structured Cleaning Belts for LCD Panel Edge Processing

During the LCD panel cutting process, the panel edges often contain:

Hard glass chips generated during glass cutting
Adhesive residues from protective films or process materials
Irregular edge burrs that affect downstream inspection and assembly

These residues make edge cleaning particularly challenging when using traditional flat abrasive films.

3D Structured Cleaning Belt addresses these challenges through its structured abrasive design.

The three-dimensional abrasive pattern provides better debris evacuation and maintains more stable contact with the panel edge during grinding.

This helps achieve:

Reduced clogging during LCD edge cleaning
More stable edge finishing results
Longer belt service life in automated panel production lines
Improved process efficiency for TFT-LCD manufacturing

Learn More

Model Overview

Abrasive grit/Abrasive	Aluminium oxide(AO)	Aluminium Hydroxi(AOH)de	Cerium Oxide(CO)	Calcium Carbonate(CaCO₃)
45µm #360	√	-	-	-	Get a quote
30µm #600	√	-	-	-	Get a quote
15µm #1200	√	-	-	√	Get a quote
9µm #2000	√	√	-	√	Get a quote
5µm #3000	√	√	-	√	Get a quote
3µm #4000	√	√	-	-	Get a quote
1µm #8000	-	-	√	-	Get a quote
0.5µm #10000	-	-	√	-	Get a quote
