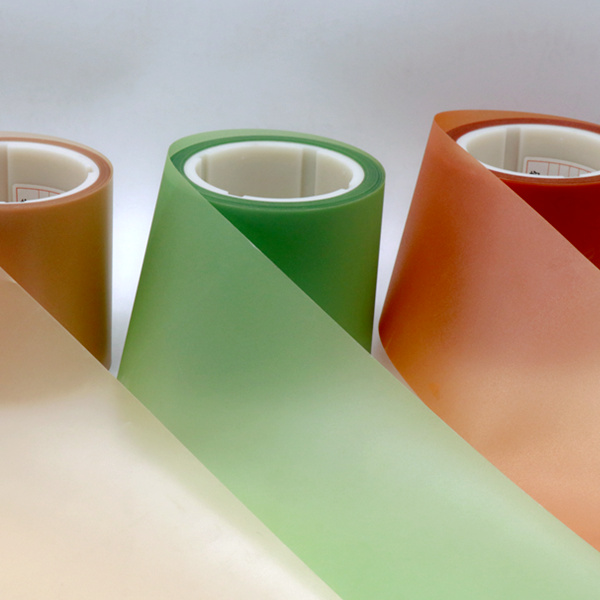

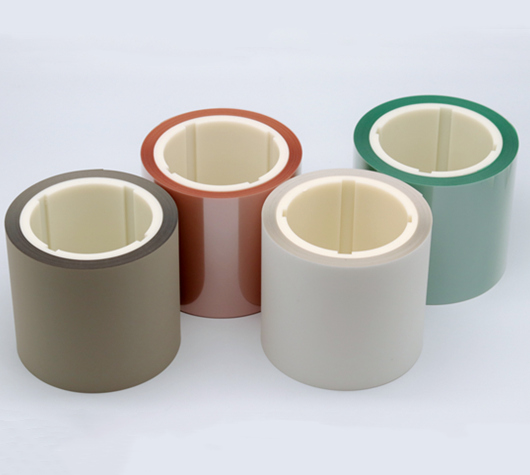

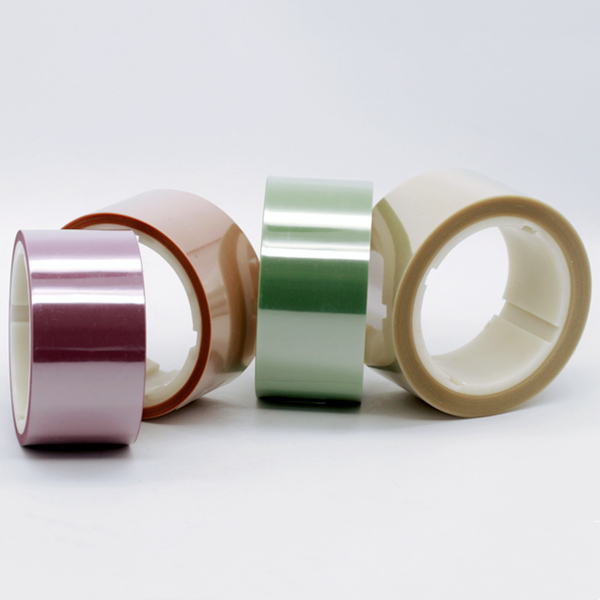

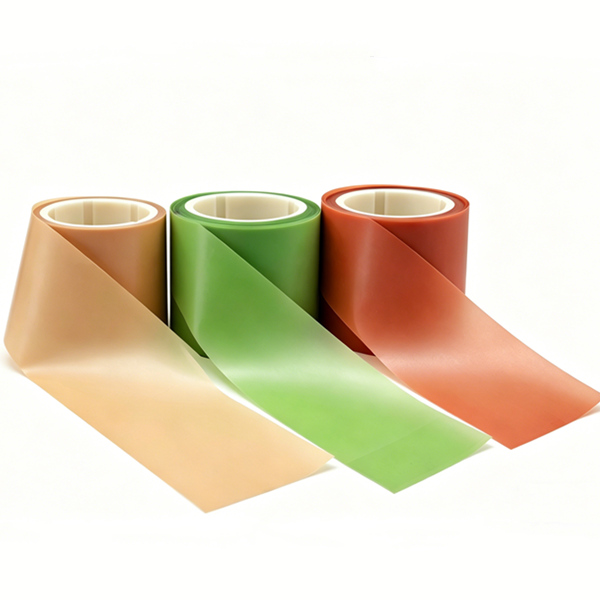

Precision Coated Diamond Roll for Fiber Optic & Microfinishing

High-precision Diamond Lapping Film roll designed for microfinishing of precision components and ultra-fine surface finishing

High-precision precision coated diamond roll designed for ultra-fine surface finishing and controlled micro-material removal

Application：fiber optic connector,crankshaft microfinishing, roller superfinishing, micro motor commutator, aerospace component, optical component, carbide,ceramic

High-Strength Polyester Film Backing for precision finishing operations

Precision abrasive particle distribution and consistent cutting performance to ensure uniform polishing results.

Grit: 1-60μm

material

Diameter [mm]

4"(101.6mm)

abrasive

1 μm

2 μm

3 μm

6 μm

9 μm

15 μm

16 μm

30 μm

40 μm

45 μm

60 μm

Send Email

Chat Now

Share With:

Solving the Most Common Failures in Lapping Film Applications

Abrasive Grain Shedding During Polishing（diamond lapping tape roll uses a high-strength bonding system to maintain strong abrasive retention, ensuring consistent polishing performance throughout the film life.）

Uneven Abrasive Coating Causing Surface Scratches（Our precision lapping film roll uses controlled precision coating technology to ensure uniform abrasive distribution across the entire film surface, significantly reducing the risk of random scratching.）

Film Breakage Causing Production Downtime（r lapping film roll is manufactured with high-tensile polyester backing to improve film strength and durability, providing stable performance during continuous polishing operations.）

Diamond polishing film for polishing Ceramic corrugated roller/Ceramic Anilox Roller

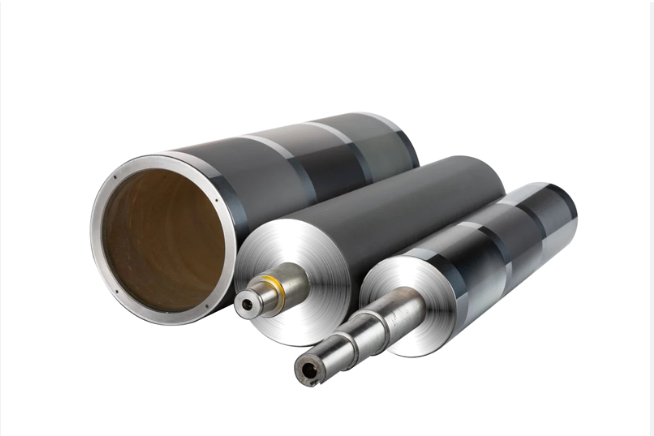

Tungsten carbide rollers polishing

Hardness greater than HV1100, suitable for high-speed production with a life of about 20-50 million running meters

After polishing, the surface roughness achieves Ra2.5μm.

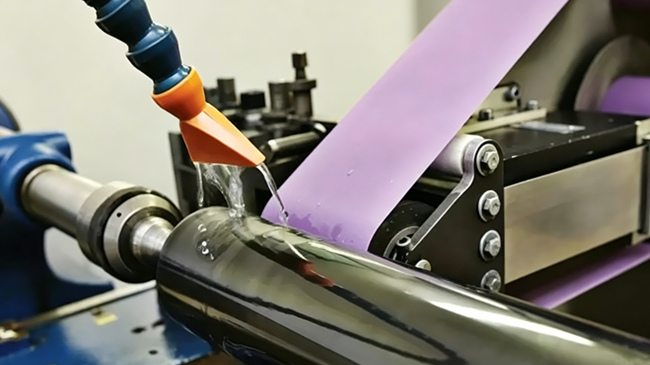

Tungsten carbide rollers polishing

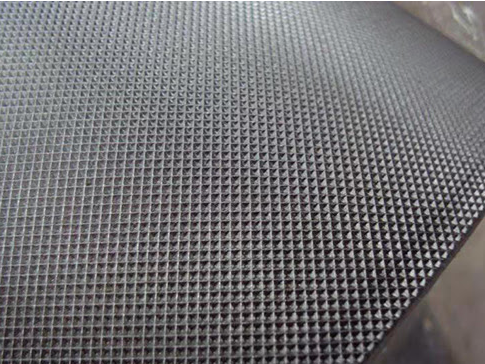

Ceramic Anilox Roller polishing

Generally diamond sand-planted grinding belt and diamond polishing belt are used, Ra<0.05.

The thickness of the chrome plating layer is 12-18um, and the thickness of the sprayed ceramic layer is 25-30um.

Learn More

Model Overview

Diameter(mm)	Thickness(mm)	Grit
101.6	3/5/45	1 μm	Get a quote
101.6	3/5/45	3 μm	Get a quote
101.6	3/5/45	6 μm	Get a quote
101.6	3/5/45	9 μm	Get a quote
101.6	3/5/45	15 μm	Get a quote
101.6	3/5/45	30 μm	Get a quote
101.6	3/5/45	45 μm	Get a quote
101.6	3/5/45	60 μm	Get a quote
