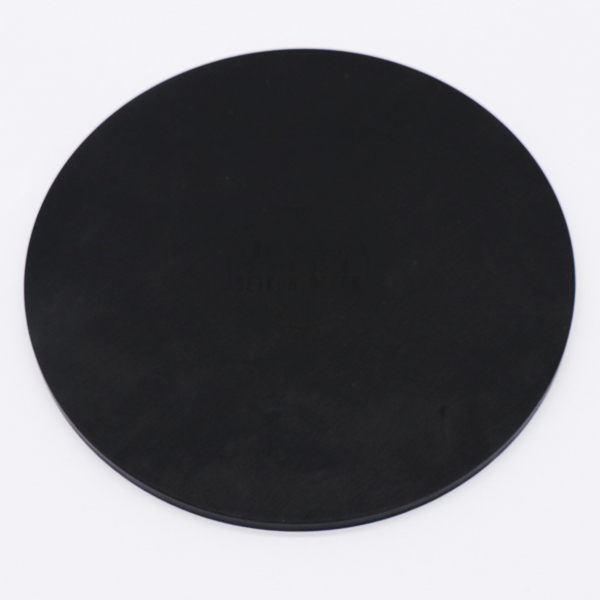

Fiber Rubber Polishing Pad

The elastic and hardness characteristics of the pad serve to evenly distribute the polishing pressure, thereby ensuring uniform polishing of the fiber ferrule's end face,absorbs vibrations generated during the process, minimizing polishing errors caused by such vibrations and guaranteeing the flatness and surface finish of the fiber end face.

Good adhesion, the rubber pad is much more “smooth” and “adhesive”,not easy to peel off.

Debonding and Coarse Grinding: 80° Fiber Rubber Polishing Pad

Fine Grinding: 70° Fiber Rubber Polishing Pad

Polishing: 60° Fiber Rubber Polishing Pad

Applicaiton：Optical Module Production, Data Center Connectivity, Optical Fiber Connector Manufacturing

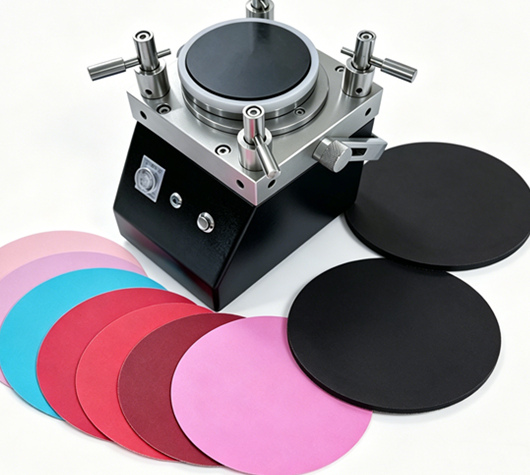

Match machine: OP-5000 MPO Fiber Polishing Machine, FPM-5000 Programmable Polishing Machine,Seikoh Giken SFP series fiber machine

Features: Excellent flatness, uniform material consistency throughout, superior wear resistance, allowing for a minimum of 30,000 reuse cycles.

material

Diameter [mm]

4.3''(110mm);

5''(127mm)

6"(153mm)

abrasive

rubber

Send Email

Chat Now

Share With:

Fiber rubber polishing pads are critical consumables in the manufacturing process of fiber optic connectors, provide a stable support surface for polishing, absorb vibrations, minimize errors during the polishing process, ensure the consistency of polishing quality.

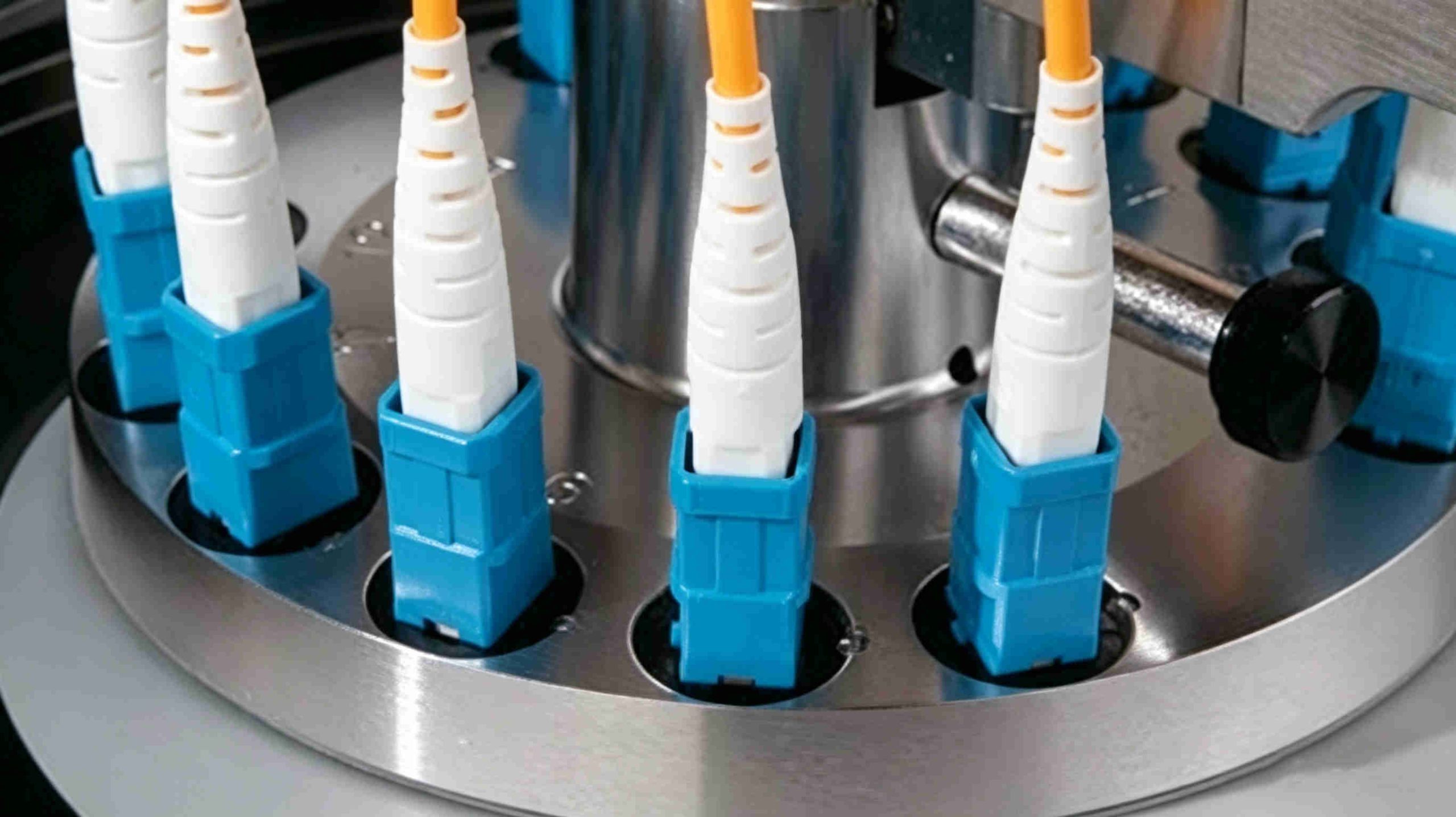

During the fiber optic polishing process, a polishing pad is positioned on the polishing machine's polishing plate. Once the fiber optic connector ferrule is secured within a polishing fixture, it comes into contact with the abrasive paper on the polishing pad—driven by polishing pressure—and undergoes relative motion.

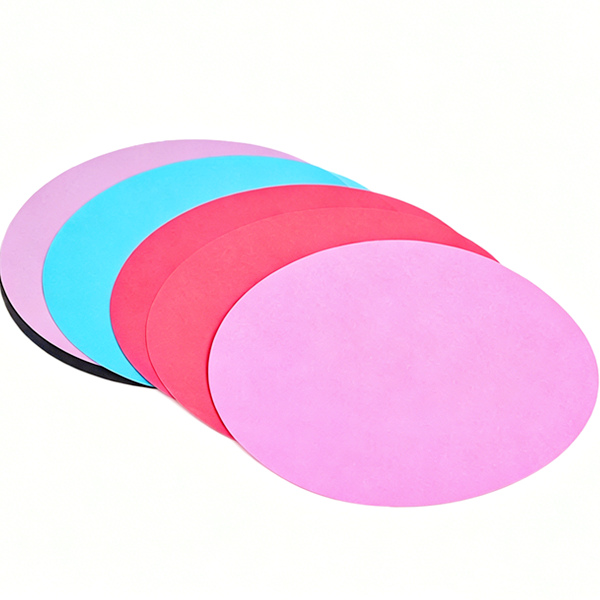

Hardness: 40°, 50°, 55°, 60°, 65°, 70°, 75°, 80°, 85°, 90°

High Elastic Silicone Rubber Material（ilicone polishing mat 5 inch is manufactured using high-quality silicone rubber, ensuring excellent elasticity and resistance to deformation during polishing）

Stable Hardness – 90 Durometer Design（90 durometer fiber polishing pad maintains stable hardness even after long polishing cycles, ensuring consistent connector polishing quality.））

Improve End-Face Geometry Accuracy/Reduce Signal Loss

One of the biggest challenges in fiber connector polishing is achieving stable 3D interferometer test parameters.

The optimized elasticity of the optical fiber polishing pad helps maintain accurate:

Radius of curvature
Apex offset
Fiber height

This ensures connectors meet strict industry standards.

Poor polishing quality often leads to excessive insertion loss (IL) and return loss (RL).

The stable structure of our fiber rubber polishing pad ensures consistent polishing pressure, helping produce smoother fiber end faces and improved optical performance.
